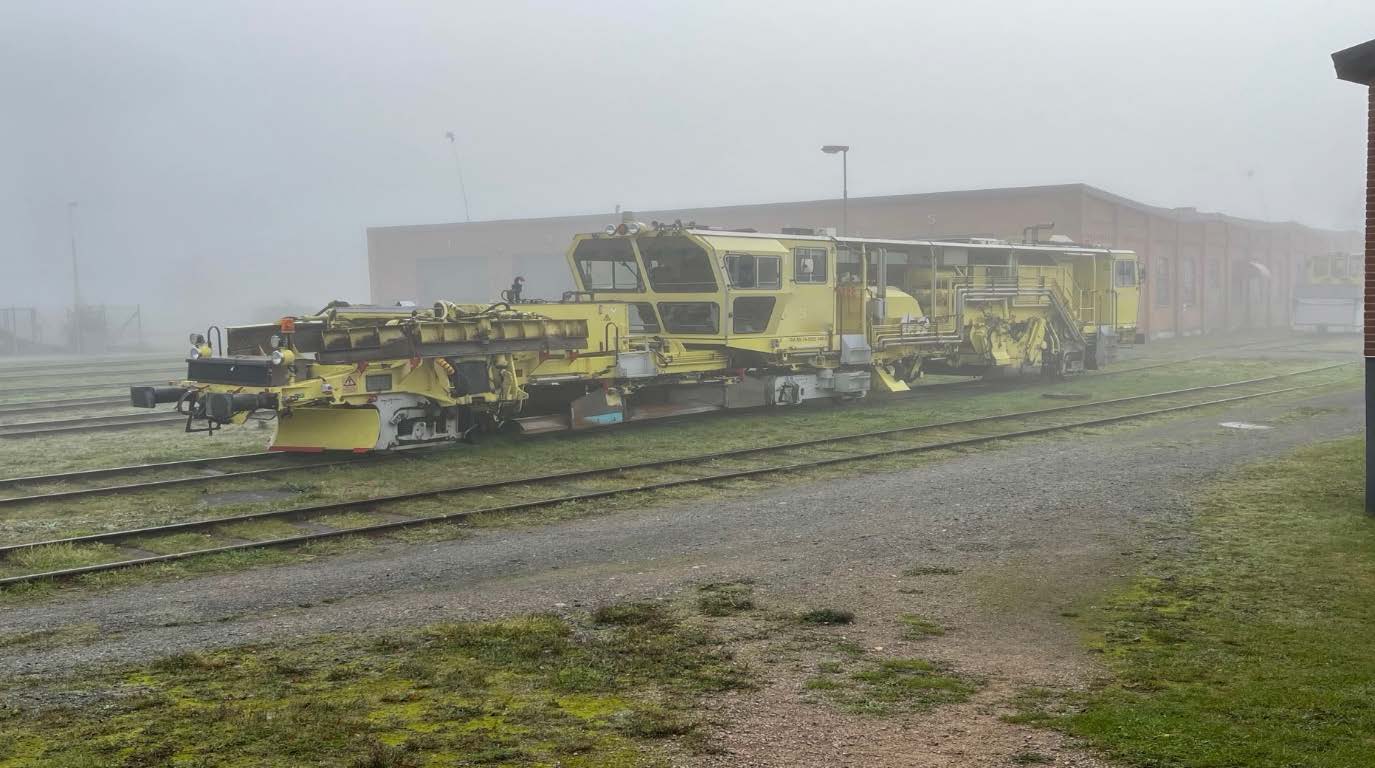

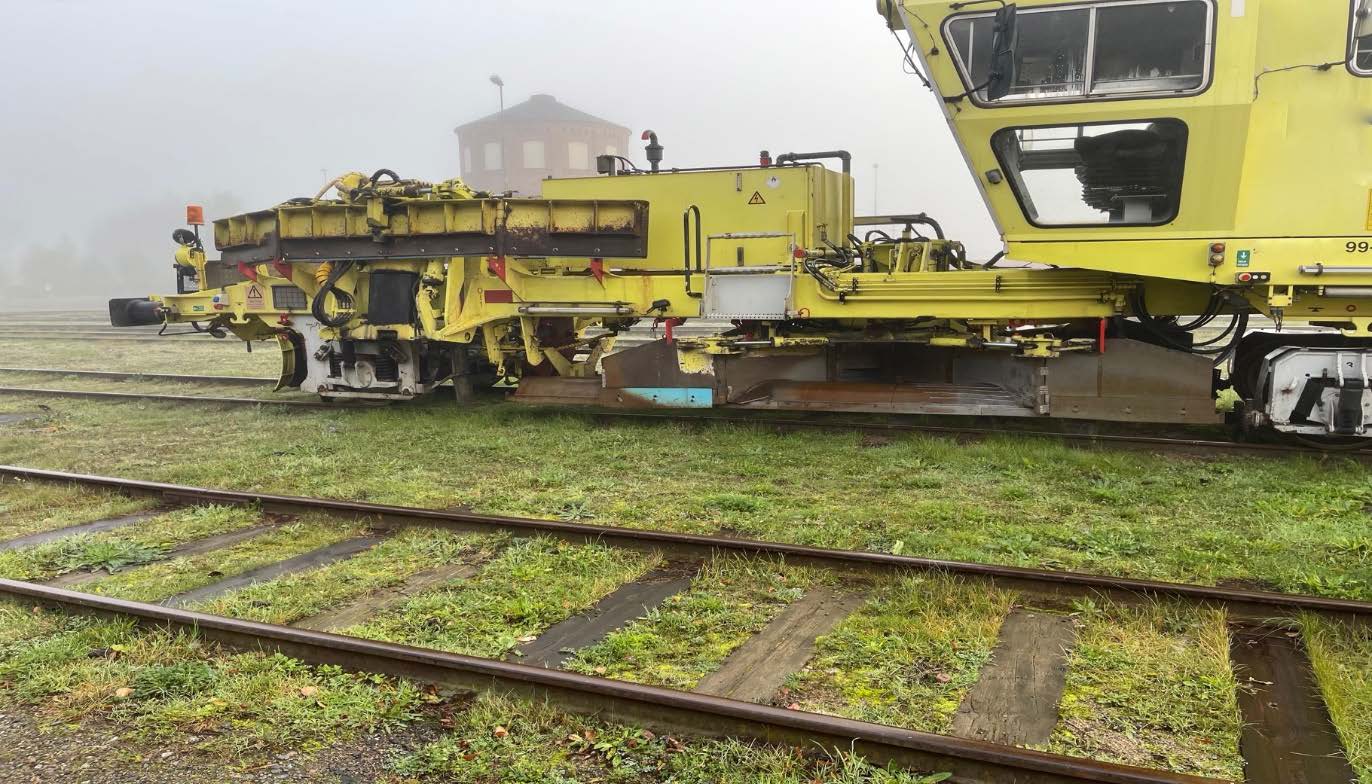

Plasser & Theurer USP 4000 S – Powerful Universal Ballast Regulator
The Plasser & Theurer USP 4000 S is a robust and highly capable ballast regulator, designed to deliver efficient ballast profiling and finishing for both maintenance and track construction projects. Combining a proven machine concept with operator-focused design, it remains a valuable asset for railway infrastructure works.
Commissioned in 1996, this machine has been in continuous operation until autumn 2025, demonstrating its reliability and durability over three decades of service. It is now available for sale as part of a fleet renewal program.
Key Features:
- Central ballast plough for precise ballast distribution.

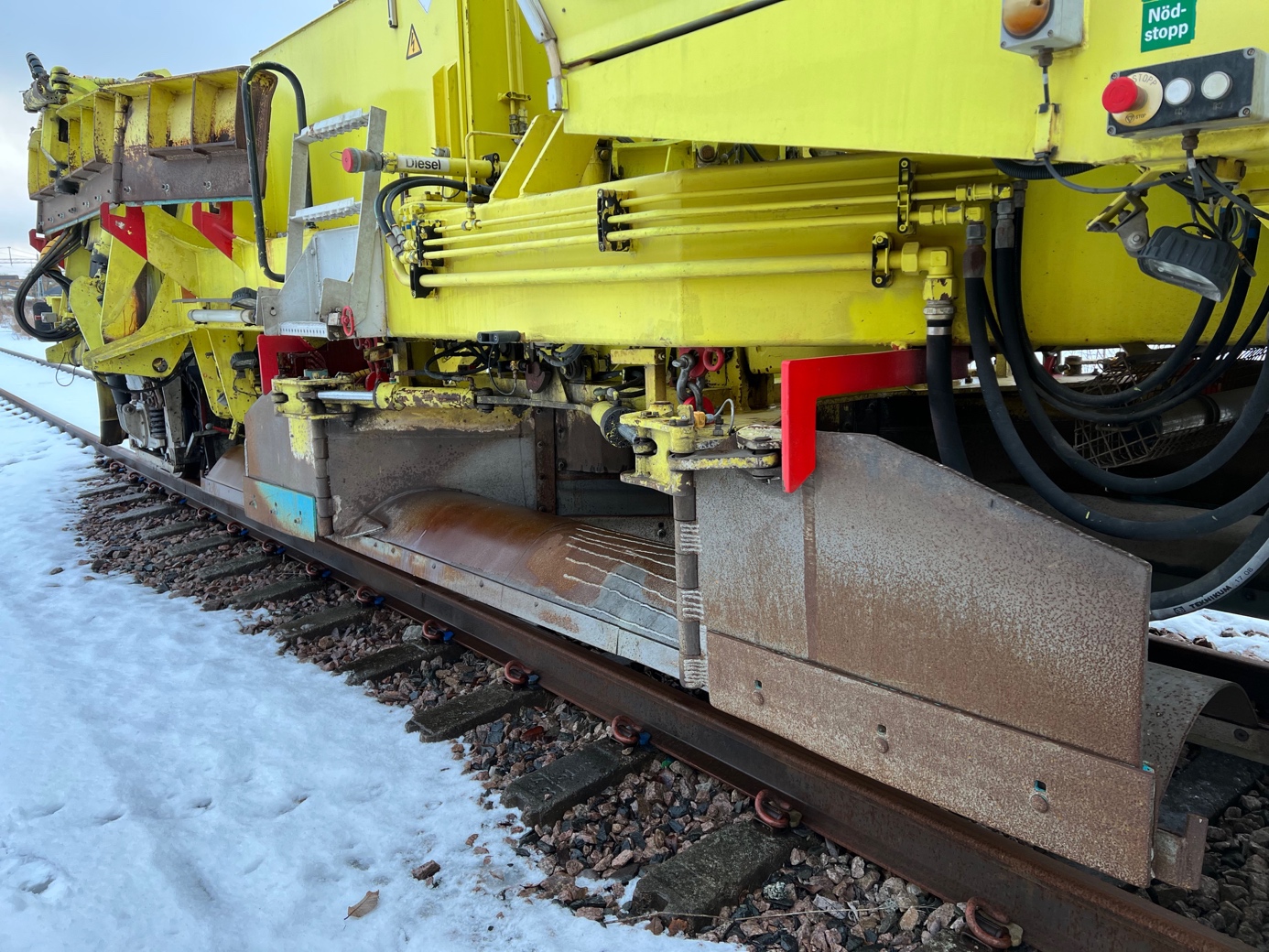

- 3 part shoulder plough for two ways ballast profiling along the track shoulders.

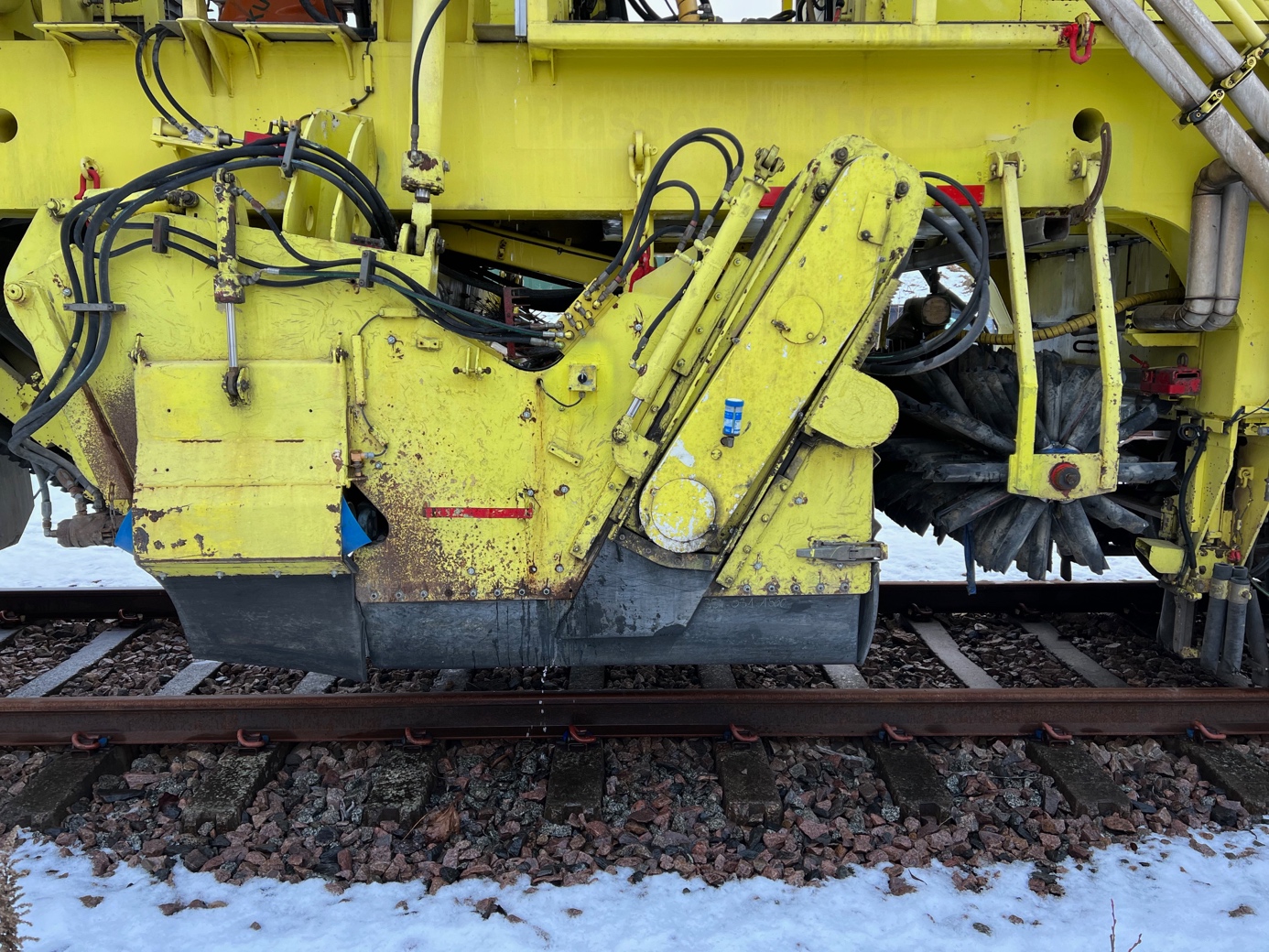

- Integrated brush and conveyor system feeding a 5 m³ ballast silo, ensuring efficient ballast recovery and redistribution.

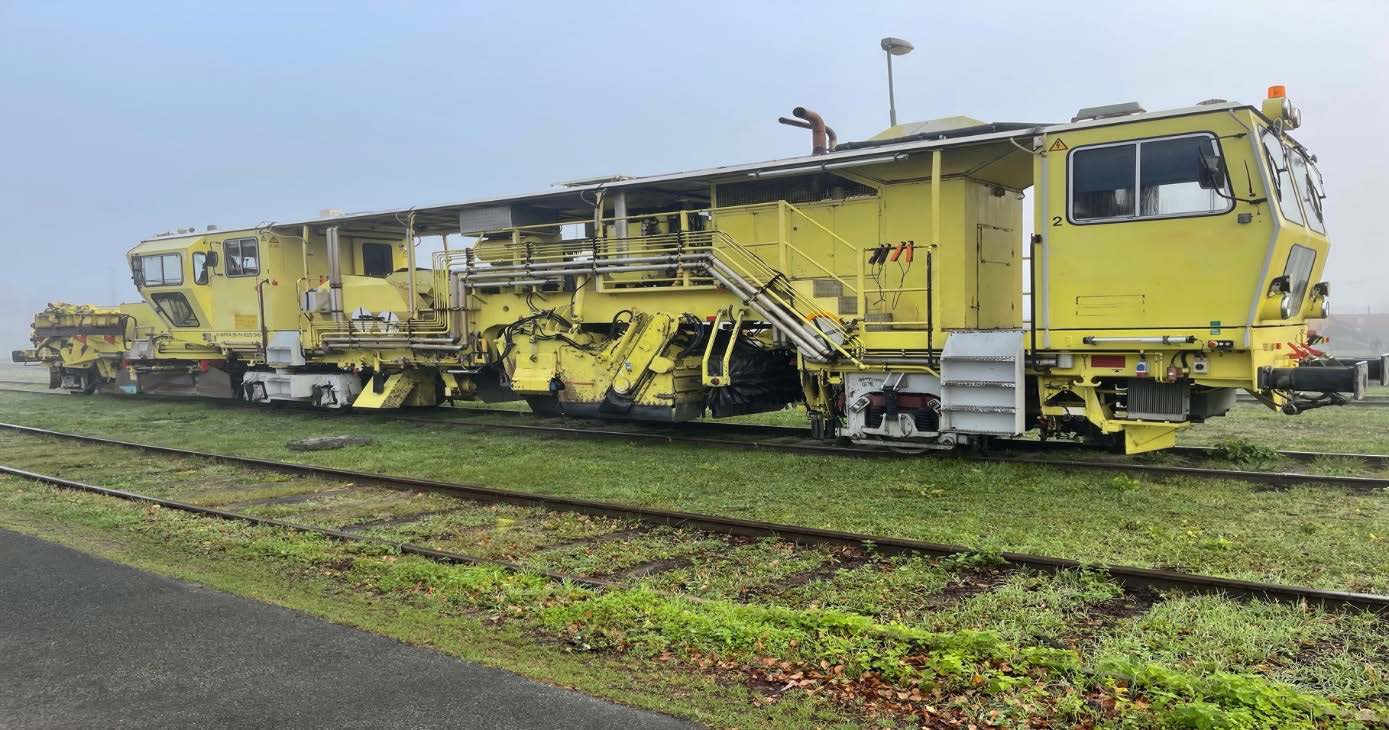

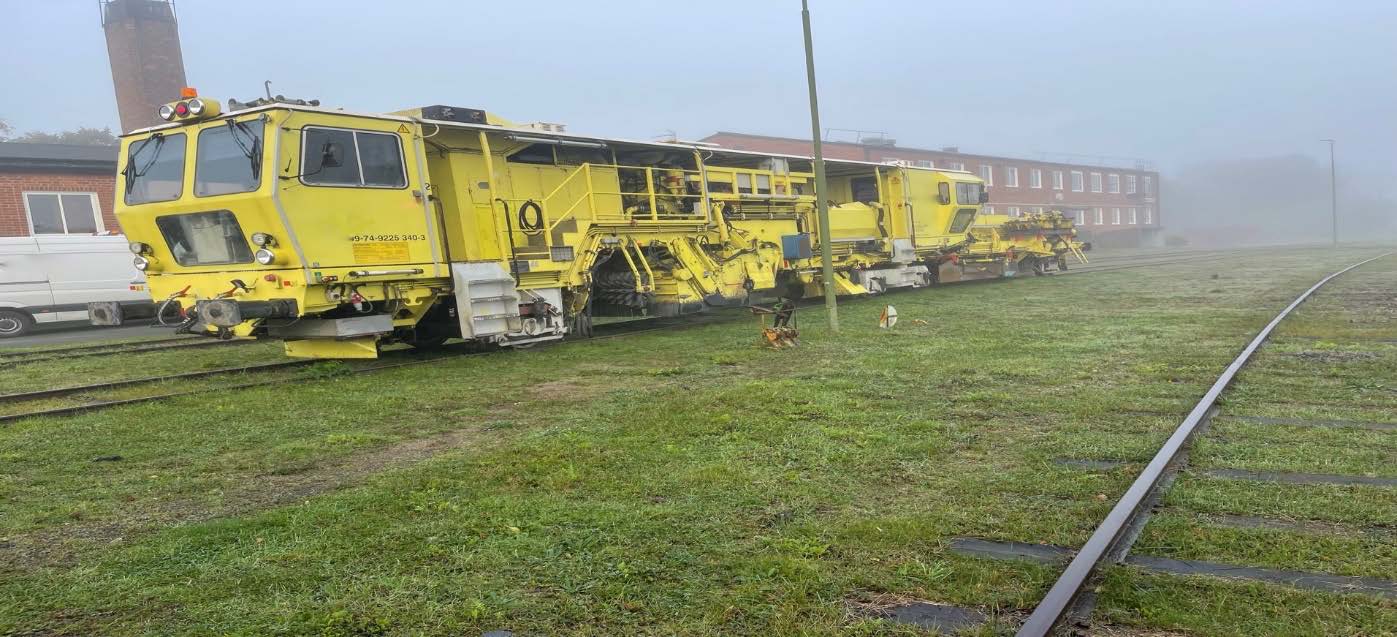

- Dual-cab configuration, providing excellent visibility and operational safety in both travel directions.

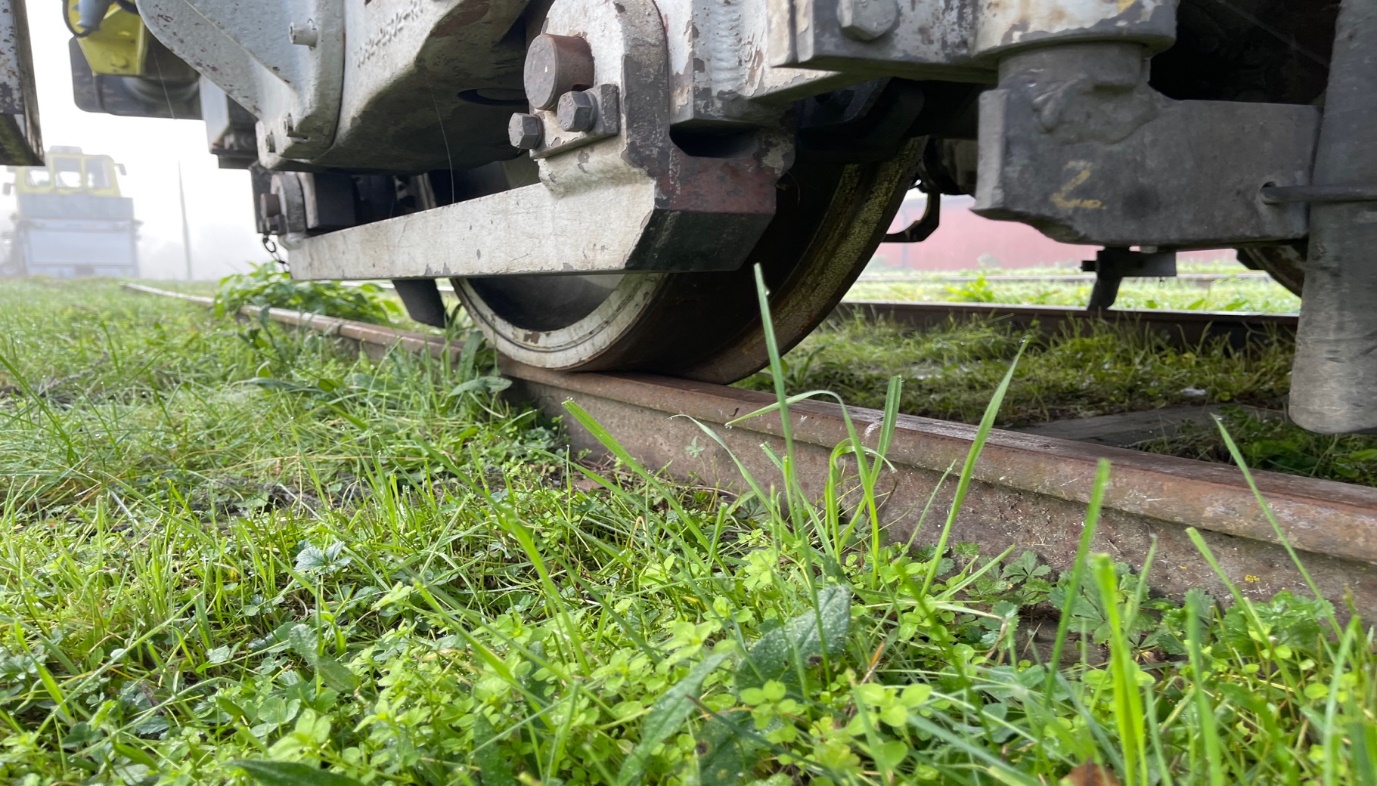

- Central bogie design, offering enhanced ride comfort and stability during transit between worksites.
Key Benefits:
- Proven and reliable Plasser & Theurer technology.
- Excellent visibility for safe and efficient operation.
- High productivity for both maintenance and construction applications.
- Comfortable travelling characteristics, reducing operator fatigue.
- Versatile ballast handling capabilities through the integrated brush, conveyor, and silo system.
The USP 4000 S is a powerful and well-proven ballast regulator that continues to offer outstanding performance for contractors and infrastructure managers seeking a cost-effective solution for ballast regulation and track finishing works.
Available immediately! A great opportunity to acquire a productive and field-proven machine with many years of operational potential ahead.
























Key data
Year of manufacture
1996
Plasser & Theurer Machine Nr
635
Track gauge
1435 mm
EVN Number
99-74-9925 340-3
Dimensions
Length
23.500mm
Width
3.100mm
Height (over top of rail)
3.800mm
Other
Engine
Scania DS11, 250kW
Weight (unloaded)
~55 t

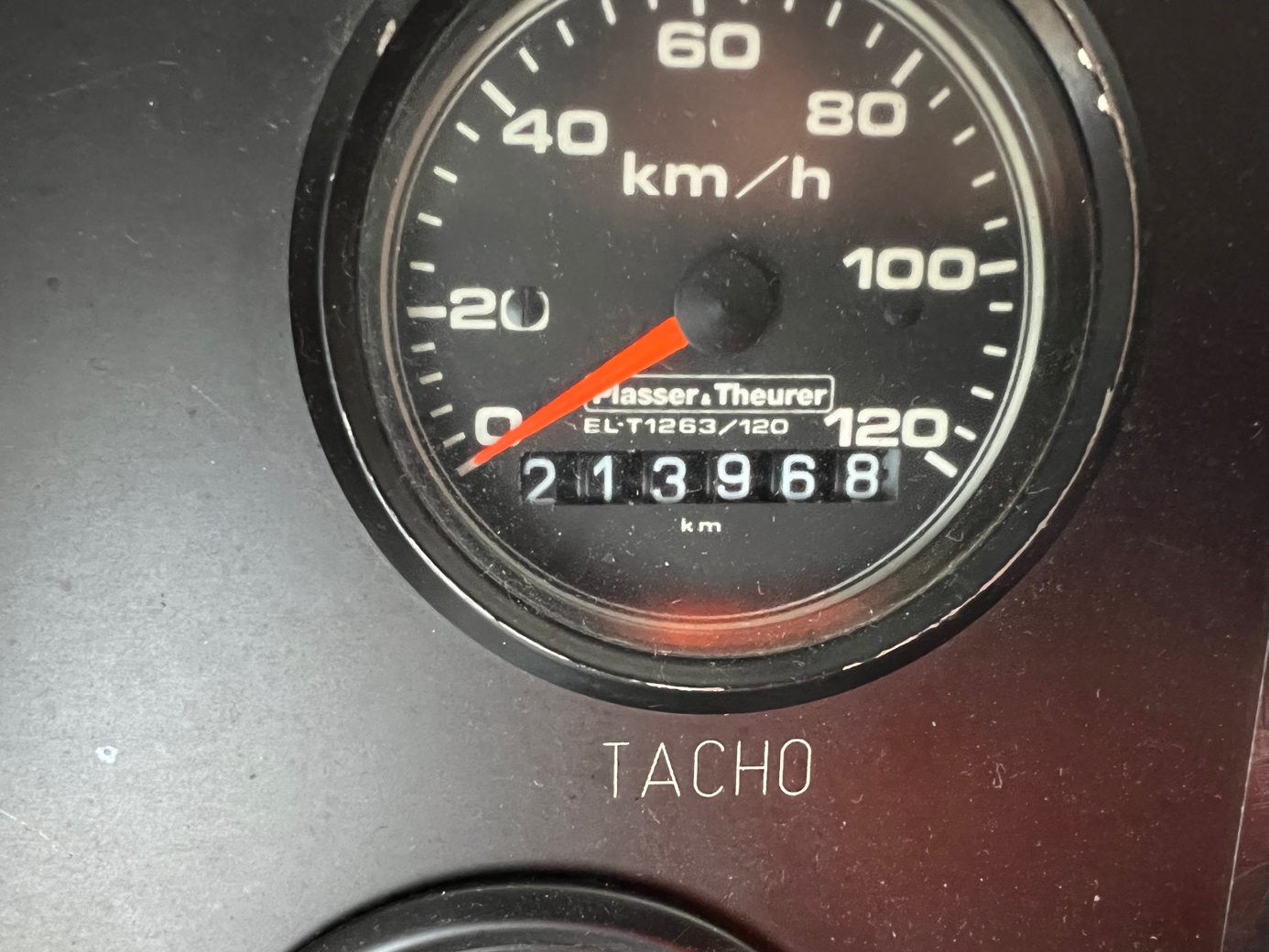

Driving speed
80 km/h
Minimum Driving radius
100mtr
CE-comformity
EU
Get all the key specifications, technical data, and performance details in our complete fact sheet.
