Plasser & Theurer 08-16 4x4C 100 RT – Compact Universal Tamping Machine (Ma. 3145)
This pre-owned, well-maintained, and fully operational Plasser & Theurer 08-16 4x4C 100 RT is a versatile and highly efficient universal tamping machine, ideally suited for contractors and infrastructure managers seeking a compact yet powerful solution for track maintenance.
Originally commissioned in 2004, the machine has been in continuous operation on the UK Network Rail network, where it has proven its reliability and performance under demanding railway conditions.

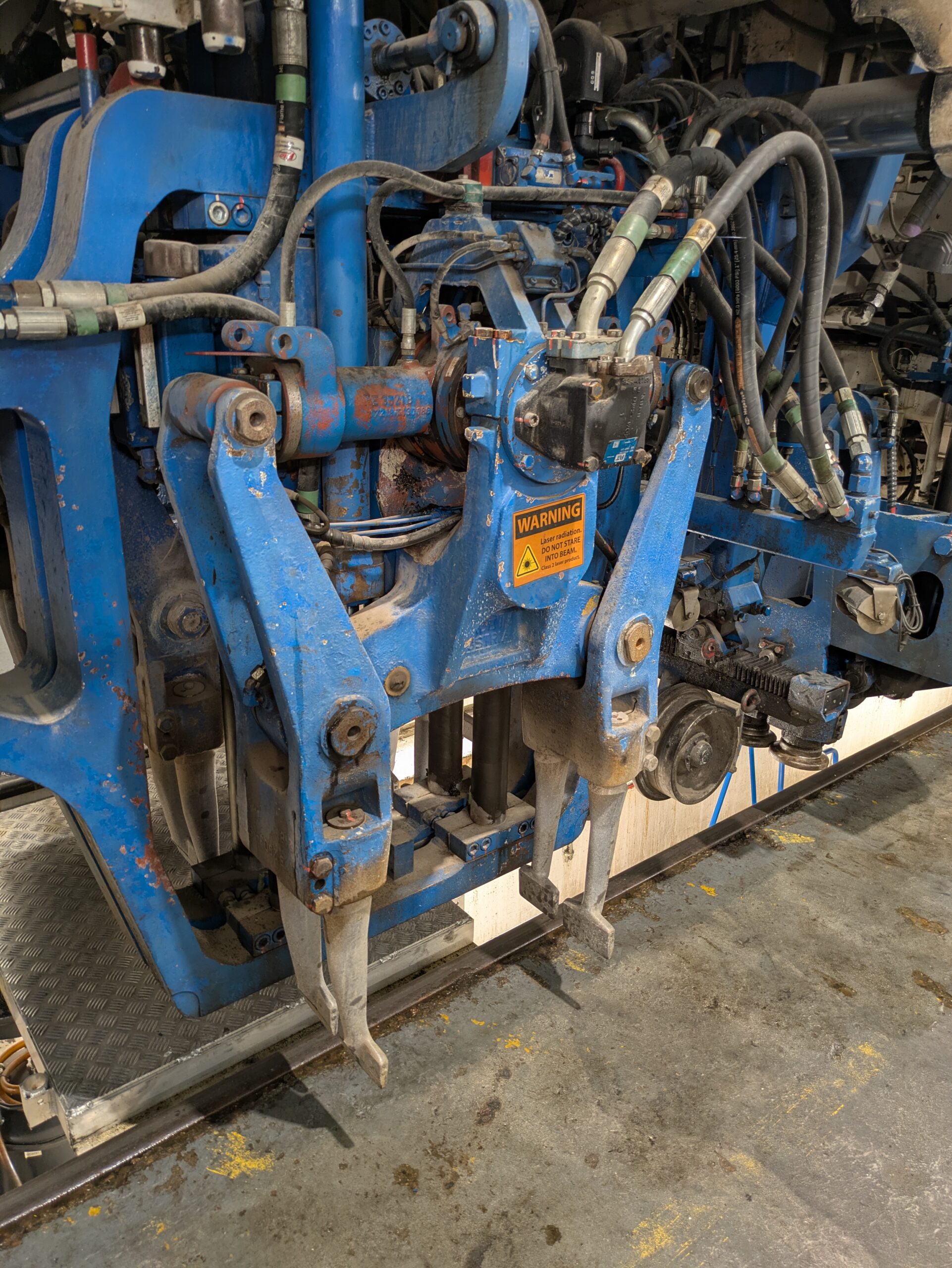

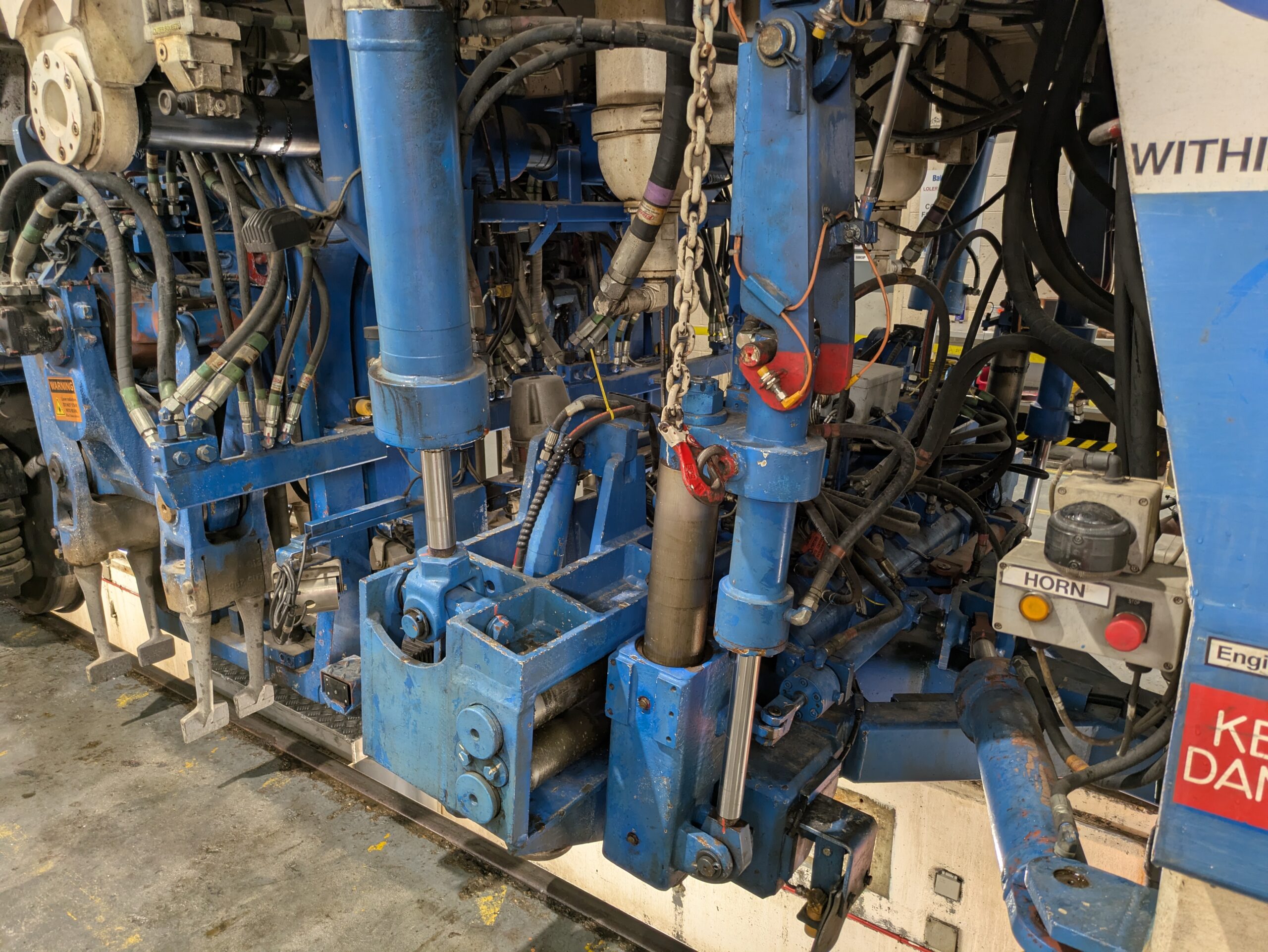

A key feature of this machine is its 16-tine Split Head tamping unit, to provide enhanced flexibility and efficiency for a wide range of maintenance applications.
Key Highlights:
- Commissioned in 2005
- Proven service history on the UK Network Rail network
- 16-tine Split Head design
- Compact and highly mobile, ideal for restricted access sites and smaller work zones
- Fully operational and well maintained
- Built to stringent railway standards, including GM/RT2400 compliance
Designed to reduce track possession times and improve operational efficiency, this compact tamping machine offers an excellent balance of productivity, reliability, and low operating costs. Its proven track record and robust design make it an attractive asset for contractors looking to maximize machine utilization while maintaining the highest standards of track quality.
The 08-16 4x4C 100 RT is a cost-effective and dependable solution for modern railway maintenance, combining mobility, performance, and compliance in one compact package.




















Key data
Year of manufacture
2004

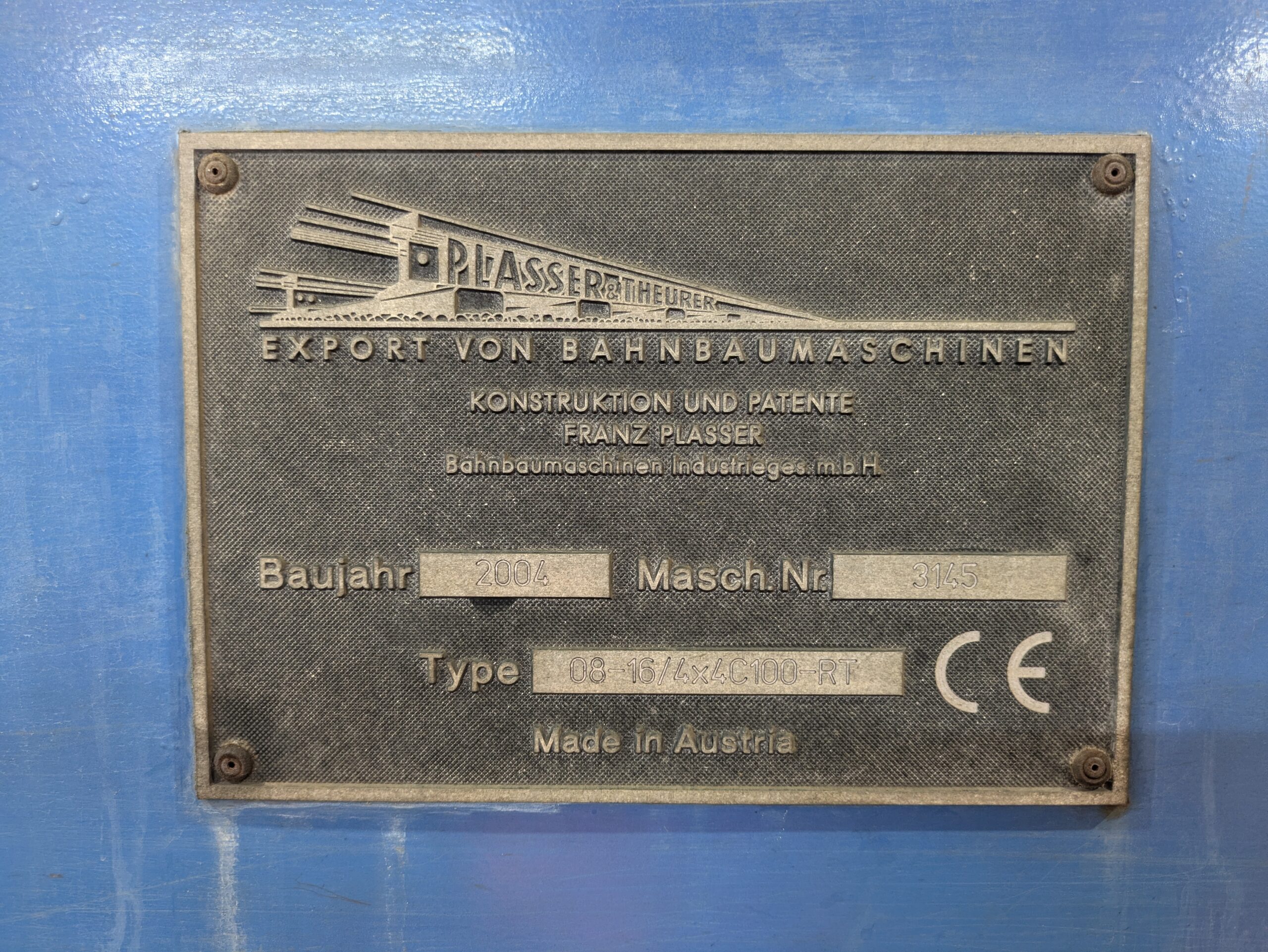

Plasser & Theurer Machine Nr
3149
Track gauge
1435mm
UK Registration
DR73943
Dimensions
Length
18.400mm
Width
3.820mm
Height (over top of rail)
2.770mm
Other
Engine
KHD BF 8M 1015C, 370kW
Weight (unloaded)
~65,0 t
Driving speed
96 km/h
Minimum driving radius
80mtr
CE-comformity
EU
Get all the key specifications, technical data, and performance details in our complete fact sheet.
